Ceramic Tile Cutting Machine

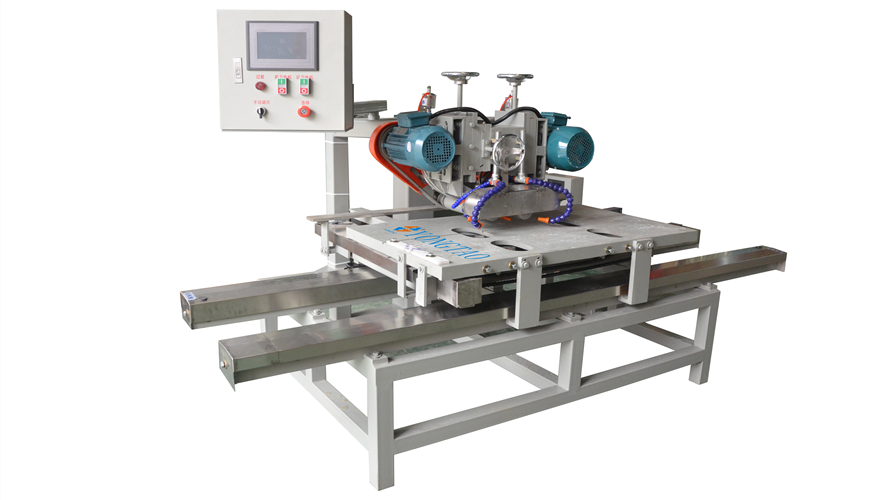

YTQS-3-1200 Two Blades CNC Manual Tiles Cutting Machine For Porcelain
Best manual tile cutter for porcelain from Yongtao! This manual tile cutter can be your mature solution in all process. Make an order for your manual tiles cutting machine price here!
PRODUCT DETAILS
YTQS-3-1200 Two Blades CNC Manual Tiles Cutting Machine For Porcelain is the latest product of Yongtao Machinery.This machine have two cutting head,the first cutting head cut a haft thickness,the second cutting head cut off the tiles.Two blades will stay in a straight line,to ensure the cutting edge is smooth.This cutting way is simple operation, no chipping,easy to adjust,high precision.The lead screw is high quality and accuracy.The cutting head use two kinds of cooling method,oil cooling and water cooling.The double cooling system ensure the machine running stable,low heat produced,increasing the use life of spindle.
1.2m CNC Tile Cutting Machine:
Technical Parameter of YTQS-3-1200 Two Blades CNC Manual Tiles Cutting Machine For Porcelain
Product introduction
Description of YTQS-3-1200 Two Blades CNC Manual Tiles Cutting Machine For PorcelainYTQS-3-1200 Two Blades CNC Manual Tiles Cutting Machine For Porcelain is the latest product of Yongtao Machinery.This machine have two cutting head,the first cutting head cut a haft thickness,the second cutting head cut off the tiles.Two blades will stay in a straight line,to ensure the cutting edge is smooth.This cutting way is simple operation, no chipping,easy to adjust,high precision.The lead screw is high quality and accuracy.The cutting head use two kinds of cooling method,oil cooling and water cooling.The double cooling system ensure the machine running stable,low heat produced,increasing the use life of spindle.
1.2m CNC Tile Cutting Machine:
Technical Parameter of YTQS-3-1200 Two Blades CNC Manual Tiles Cutting Machine For Porcelain
TECHNICAL DATA
Machine specifications
| Numbers of cutting head | 2pcs |
|---|---|
| Motor power | 3kw |
| Diameter of blades | (Ø120-130mm)*20mm |
| Guide rail | Oil dip |
| Platform material | Cast iron |
| Control method | Cnc |
| Max processing size | 1200mm |
| Total power | 6kw |
| Size of machine | 2.55*1.48*1.4m |
| Weight | 700kg |
Technical data reflects the legacy product record. Confirm voltage, options and final configuration with the approved quotation.
